この記事はopenSUSE Advent Calendar 2020 11日目の記事です。
みなさんこんにちは、HalNi こと Harukaと申します。
MegaRAIDやmdRAIDでのRAIDは、構成ディスクのSMART値の中にある”WHEN_FAILED”のフラグが立った場合にディスクの切り離し・リビルドを行います。
しかしSMART値で言うところのC7や05、代替処理保留中のセクタ数や代替処理済のセクタ数が他のHDDでもカウントアップしていた場合、リビルド中に他のHDDが飛んでストレージがお亡くなりになることも起こり得ます(起こった)
HDDの早期交換を行うためにも、各ディスクの詳細を把握したい場合、直接ディスクのSMART値を読みに行く必要があります
しかし、以前cazydiskinfoを用いてディスクのSMART値を簡単に閲覧する方法を書きましたが、この方法ではMegaRAIDに接続されているHDD・SSDのSMART値は確認できません 汗
(本家?のCrystalDiskInfoは v8.4.0 でMegaRAIDに対応済み)
この場合、smartmontools を使用してSMART値を確認すれば解決できます。
smartmontools はHDDが提供しているSMART情報を取得するツールですが、オンボードSATAコントローラと同じ感覚でMegaRAIDに繋がっているHDDのSMART値も取得できます。
検証環境:
Supermicro X10SLL-F
MegaRAID 9266-8i
openSUSE Leap 15.2
おうちの検証(にも使う)環境
おうちサーバは大部分がopenSUSEで稼働しています
openSUSE では smartmontools はパッケージとして配布されています。
haruka@SUSE-X10SLL:~> zypper search smartmontools Repository 'Main Update Repository' is out-of-date. You can run 'zypper refresh' as root to update it. Loading repository data... Reading installed packages... S | Name | Summary | Type --+---------------+---------------------------+-------- i | smartmontools | Monitor for SMART devices | package haruka@SUSE-X10SLL:~>
基本的には smartmontools はデフォルトでインストールされているはずです
入っていない場合は openSUSE の場合 sudo zypper install smartmontools で導入できます。
smartmontoolsが動いているか確認、デーモンのstatusを見ればわかります
systemctl status smartd
haruka@SUSE-X10SLL:~> systemctl status smartd ● smartd.service - Self Monitoring and Reporting Technology (SMART) Daemon Loaded: loaded (/usr/lib/systemd/system/smartd.service; enabled; vendor preset: enabled) Active: active (running) since Thu 2020-10-08 07:55:57 JST; 3 days ago Docs: man:smartd(8) man:smartd.conf(5) Main PID: 1134 (smartd) Tasks: 1 CGroup: /system.slice/smartd.service └─1134 /usr/sbin/smartd -n haruka@SUSE-X10SLL:~>
active になっていればOK
接続されているディスクを検索します
sudo smartctl --scan
haruka@SUSE-X10SLL:~> sudo smartctl --scan /dev/sda -d scsi # /dev/sda, SCSI device /dev/sdb -d scsi # /dev/sdb, SCSI device /dev/sdc -d scsi # /dev/sdc, SCSI device /dev/bus/0 -d megaraid,0 # /dev/bus/0 [megaraid_disk_00], SCSI device /dev/bus/0 -d megaraid,1 # /dev/bus/0 [megaraid_disk_01], SCSI device /dev/bus/0 -d megaraid,2 # /dev/bus/0 [megaraid_disk_02], SCSI device /dev/bus/0 -d megaraid,3 # /dev/bus/0 [megaraid_disk_03], SCSI device /dev/bus/0 -d megaraid,14 # /dev/bus/0 [megaraid_disk_14], SCSI device /dev/bus/0 -d megaraid,15 # /dev/bus/0 [megaraid_disk_15], SCSI device /dev/bus/0 -d megaraid,16 # /dev/bus/0 [megaraid_disk_16], SCSI device /dev/bus/0 -d megaraid,17 # /dev/bus/0 [megaraid_disk_17], SCSI device haruka@SUSE-X10SLL:~>
論理ディスクの下に出てくる /dev/bus/0 にあるのが物理ディスクです。
手元環境はMegaRAIDに計8台HDDを繋いでいるため、8台分リストアップされています。
ここでMegaRAID下のHDDを参照する場合、引数としてデバイスタイプを明示する必要があります。
-d の後にコントローラ(今回はMegaRAID)とすればOK
smartctl --info /dev/bus/0 -d megaraid,ディスク番号
ディスクの情報が取得できます
sudo smartctl --info /dev/bus/0 -d megaraid,14
haruka@SUSE-X10SLL:~> sudo smartctl --info /dev/bus/0 -d megaraid,14 smartctl 7.0 2019-05-21 r4917 [x86_64-linux-5.3.18-lp152.19-default] (SUSE RPM) Copyright (C) 2002-18, Bruce Allen, Christian Franke, www.smartmontools.org === START OF INFORMATION SECTION === Model Family: Hitachi Deskstar 7K1000 Device Model: Hitachi HDS721010KLA330 Serial Number: ********** LU WWN Device Id: 5 000cca 21ed35ddc Firmware Version: GKAOAB0A User Capacity: 1,000,204,886,016 bytes [1.00 TB] Sector Size: 512 bytes logical/physical Device is: In smartctl database [for details use: -P show] ATA Version is: ATA/ATAPI-7 T13/1532D revision 1 Local Time is: Sun Oct 11 14:26:22 2020 JST SMART support is: Available - device has SMART capability. SMART support is: Enabled haruka@SUSE-X10SLL:~>
sudo smartctl -A /dev/bus/0 -d megaraid,ディスク番号
これでsmart値を確認できます。
sudo smartctl -A /dev/bus/0 -d megaraid,14
haruka@SUSE-X10SLL:~> sudo smartctl -A /dev/bus/0 -d megaraid,14 smartctl 7.0 2019-05-21 r4917 [x86_64-linux-5.3.18-lp152.19-default] (SUSE RPM) Copyright (C) 2002-18, Bruce Allen, Christian Franke, www.smartmontools.org === START OF READ SMART DATA SECTION === SMART Attributes Data Structure revision number: 16 Vendor Specific SMART Attributes with Thresholds: ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE 1 Raw_Read_Error_Rate 0x000b 100 100 016 Pre-fail Always - 0 2 Throughput_Performance 0x0005 130 130 054 Pre-fail Offline - 150 3 Spin_Up_Time 0x0007 105 105 024 Pre-fail Always - 656 (Average 665) 4 Start_Stop_Count 0x0012 100 100 000 Old_age Always - 39 5 Reallocated_Sector_Ct 0x0033 100 100 005 Pre-fail Always - 0 7 Seek_Error_Rate 0x000b 100 100 067 Pre-fail Always - 0 8 Seek_Time_Performance 0x0005 132 132 020 Pre-fail Offline - 33 9 Power_On_Hours 0x0012 095 095 000 Old_age Always - 38221 10 Spin_Retry_Count 0x0013 100 100 060 Pre-fail Always - 0 12 Power_Cycle_Count 0x0032 100 100 000 Old_age Always - 34 192 Power-Off_Retract_Count 0x0032 100 100 000 Old_age Always - 360 193 Load_Cycle_Count 0x0012 100 100 000 Old_age Always - 360 194 Temperature_Celsius 0x0002 162 162 000 Old_age Always - 37 (Min/Max 17/47) 196 Reallocated_Event_Count 0x0032 100 100 000 Old_age Always - 0 197 Current_Pending_Sector 0x0022 100 100 000 Old_age Always - 0 198 Offline_Uncorrectable 0x0008 100 100 000 Old_age Offline - 0 199 UDMA_CRC_Error_Count 0x000a 200 200 000 Old_age Always - 0 haruka@SUSE-X10SLL:~>
crystaldiskinfoは16進数だが smartctlでは 10進数で表記されています
よって C5 "代替処理保留中のセクタ数" を参照する場合は 197 を参照すればOK
VALUE や RAW_VALUE の値を読むと、このHDDは4万時間弱通電しているのか、などということが分かります
当たり前ですがSSDも参照できます。
haruka@SUSE-RX2540:~> sudo smartctl --info /dev/bus/1 -d megaraid,2 smartctl 6.6 2017-11-05 r4594 [x86_64-linux-4.12.14-lp151.28.67-default] (SUSE RPM) Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org === START OF INFORMATION SECTION === Vendor: SEAGATE Product: ST100FM0002 Revision: FT03 User Capacity: 100,030,242,816 bytes [100 GB] Logical block size: 512 bytes LB provisioning type: not reported [LBPME=1, LBPRZ=1] Rotation Rate: Solid State Device Form Factor: 2.5 inches Logical Unit id: 0x5000c5003010c48f Serial number: ********** Device type: disk Transport protocol: SAS (SPL-3) Local Time is: Sun Oct 11 03:07:22 2020 JST SMART support is: Available - device has SMART capability. SMART support is: Enabled Temperature Warning: Disabled or Not Supported haruka@SUSE-RX2540:~> sudo smartctl -A /dev/bus/1 -d megaraid,2 smartctl 6.6 2017-11-05 r4594 [x86_64-linux-4.12.14-lp151.28.67-default] (SUSE RPM) Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org === START OF READ SMART DATA SECTION === Current Drive Temperature: 38 C Drive Trip Temperature: 65 C Manufactured in week 13 of year 2013 Specified cycle count over device lifetime: 10000 Accumulated start-stop cycles: 95 Vendor (Seagate) cache information Blocks sent to initiator = 2384575137 Blocks received from initiator = 3146259547 Blocks read from cache and sent to initiator = 256 Number of read and write commands whose size <= segment size = 310239021 Number of read and write commands whose size > segment size = 119138 Vendor (Seagate/Hitachi) factory information number of hours powered up = 49094.47 number of minutes until next internal SMART test = 33 haruka@SUSE-RX2540:~>
SAS接続の Seagate製 100GB SSD からも正常に情報を読めている (FUJITSU RX2540 M2, EP420i, openSUSE Leap 15.1 )
こんな記事をのうのうと書いていたら、まさにMegaRAID下のHDDが一台Failしたという…
FailしたHDDのSMARTはこんな感じ
haruka@SUSE-TX200:~> sudo smartctl --info /dev/sdd -d sat smartctl 6.6 2017-11-05 r4594 [x86_64-linux-4.12.14-lp151.28.59-default] (SUSE RPM) Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org === START OF INFORMATION SECTION === Device Model: ST8000NM0055-1RM112 Serial Number: ZA16DXZE LU WWN Device Id: 5 000c50 0a1d77924 Firmware Version: SN02 User Capacity: 8,001,563,222,016 bytes [8.00 TB] Sector Sizes: 512 bytes logical, 4096 bytes physical Rotation Rate: 7200 rpm Form Factor: 3.5 inches Device is: Not in smartctl database [for details use: -P showall] ATA Version is: ACS-3 T13/2161-D revision 5 SATA Version is: SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s) Local Time is: Sun Oct 11 19:42:29 2020 JST SMART support is: Available - device has SMART capability. SMART support is: Enabled haruka@SUSE-TX200:~> sudo smartctl -A /dev/sdd -d sat smartctl 6.6 2017-11-05 r4594 [x86_64-linux-4.12.14-lp151.28.59-default] (SUSE RPM) Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org === START OF READ SMART DATA SECTION === SMART Attributes Data Structure revision number: 10 Vendor Specific SMART Attributes with Thresholds: ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE 1 Raw_Read_Error_Rate 0x000f 039 039 044 Pre-fail Always FAILING_NOW 6416884 3 Spin_Up_Time 0x0003 089 088 000 Pre-fail Always - 0 4 Start_Stop_Count 0x0032 099 099 020 Old_age Always - 1958 5 Reallocated_Sector_Ct 0x0033 074 074 010 Pre-fail Always - 40320 (0 1) 7 Seek_Error_Rate 0x000f 092 060 045 Pre-fail Always - 1761493702 9 Power_On_Hours 0x0032 072 072 000 Old_age Always - 25310 (218 229 0) 10 Spin_Retry_Count 0x0013 100 100 097 Pre-fail Always - 0 12 Power_Cycle_Count 0x0032 100 100 020 Old_age Always - 64 184 End-to-End_Error 0x0032 100 100 099 Old_age Always - 0 187 Reported_Uncorrect 0x0032 017 017 000 Old_age Always - 83 188 Command_Timeout 0x0032 084 084 000 Old_age Always - 146031116387 189 High_Fly_Writes 0x003a 100 100 000 Old_age Always - 0 190 Airflow_Temperature_Cel 0x0022 063 046 040 Old_age Always - 37 (Min/Max 35/37) 191 G-Sense_Error_Rate 0x0032 099 099 000 Old_age Always - 2404 192 Power-Off_Retract_Count 0x0032 100 100 000 Old_age Always - 274 193 Load_Cycle_Count 0x0032 029 029 000 Old_age Always - 142179 194 Temperature_Celsius 0x0022 037 054 000 Old_age Always - 37 (0 16 0 0 0) 195 Hardware_ECC_Recovered 0x001a 068 064 000 Old_age Always - 6416884 197 Current_Pending_Sector 0x0012 100 100 000 Old_age Always - 0 198 Offline_Uncorrectable 0x0010 100 100 000 Old_age Offline - 0 199 UDMA_CRC_Error_Count 0x003e 200 200 000 Old_age Always - 0 240 Head_Flying_Hours 0x0000 100 253 000 Old_age Offline - 19618 (150 159 0) 241 Total_LBAs_Written 0x0000 100 253 000 Old_age Offline - 16454446061 242 Total_LBAs_Read 0x0000 100 253 000 Old_age Offline - 2141289580391 haruka@SUSE-TX200:~>
ID :1 Raw_Read_Error_Rate WHEN_FAILED が FAILING_NOW になっているのが分かるかと思います。
因みにこのHDDを CrystalDiskInfo で見るとこんな感じ
自動監視を行う場合、 Reallocated_Sector_Ct や Current_Pending_Sector の生の値を定期的に見てあげたら良さそうです。
ということで異常が発生した時にSlackでアラートを飛ばしてくれるスクリプトを適当に書いたのでよければどうぞ
crontabとかで定期的に実行してあげると良いかも?

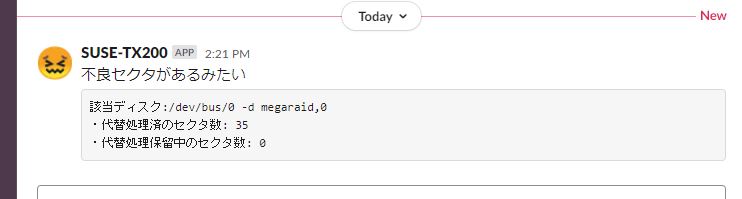

実行したサーバのHDDに不良セクタが発生した場合、こんな感じに通知が飛んできます
やはりSMART値の監視は大事やね (
